Dual Battery Wiring + Fuse Block

Discussion in 'Audio & Electronics' started by ak_cowboy, Apr 6, 2015.

  1. ak_cowboy

    ak_cowboy Penguin Hunter

    Age:
    32
    Posts:
    14,710
    Likes Received:
    252
    Joined:
    Nov 28, 2010
    Location:
    Alaska
    Prepping the materials for this summer. Already have the Blue Sea Fuse Block on the way (12 post, power only), need the battery cables and solenoid next.

    Blue Sea
    Amazon.com: Blue Sea Systems 5029 Fuse Block Screw Term Blade: Sports & Outdoors

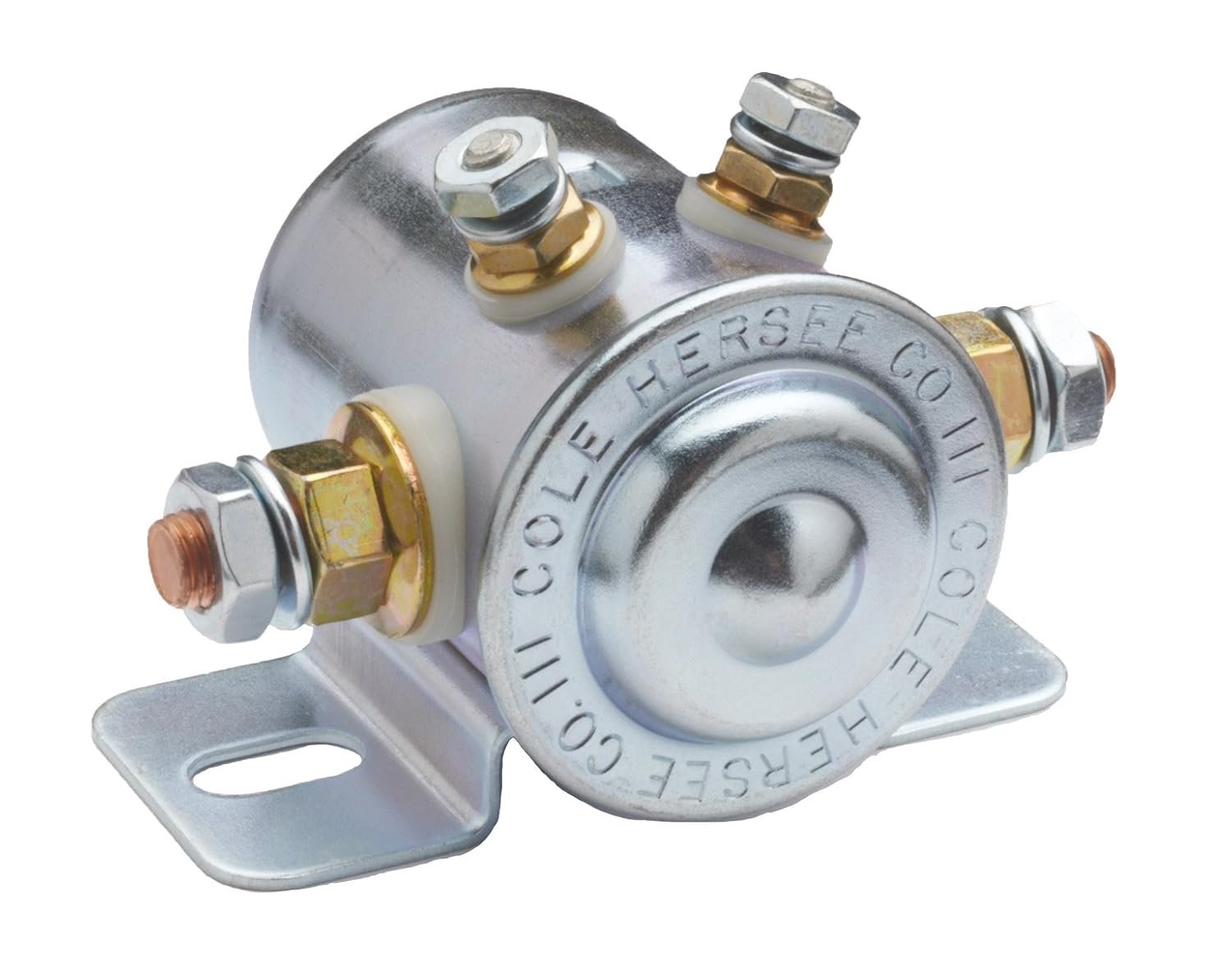

    Solenoid
    http://smile.amazon.com/Cole-Hersee-24059-BP-Insulated-Continuous/dp/B0064MX7US/ref=pd_sim_auto_3?ie=UTF8&refRID=0DVF9HHXFS5QS9D895G6
    [​IMG]

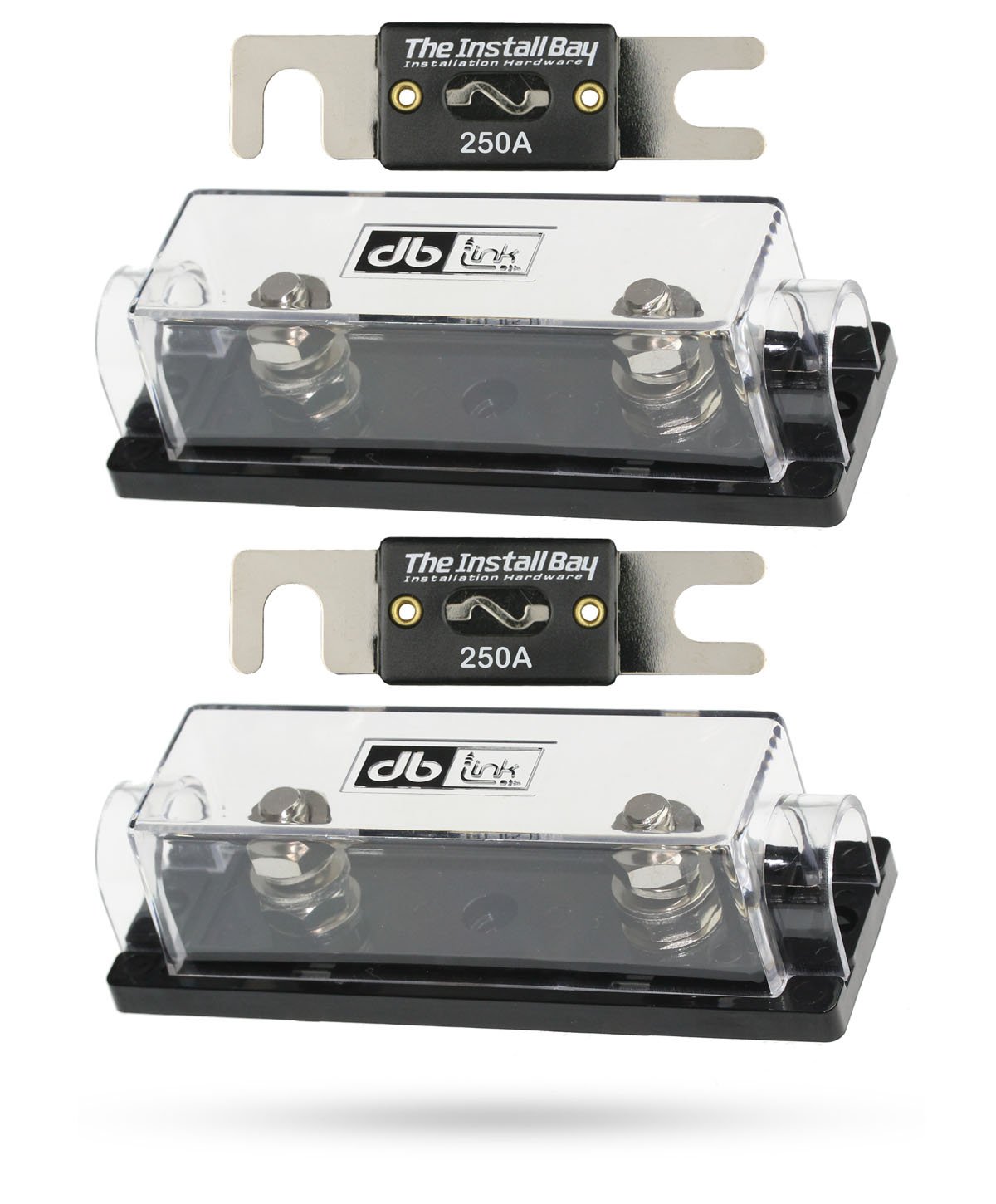

    Fuses for Battery
    http://smile.amazon.com/dp/B00D8E0SRA/ref=wl_it_dp_o_pC_nS_ttl?_encoding=UTF8&colid=VBGP6VAWBVZE&coliid=IE1FWT6BUZMMA&psc=1
    [​IMG]

    Now I just have to determine if I want to use 4 gauge or 1/0 gauge wire.
    I can order 25ft of either, with only a $10 difference. The longest stretch would be from the aux battery across the engine bay (~5ft)
    4 gauge
    http://smile.amazon.com/dp/B00KRYCY9E/ref=wl_it_dp_o_pC_nS_ttl?_encoding=UTF8&colid=VBGP6VAWBVZE&coliid=IAXYLKK66FSC3

    1/0 gauge
    http://smile.amazon.com/dp/B00J0DJPEK/ref=wl_it_dp_o_pC_nS_ttl?_encoding=UTF8&colid=VBGP6VAWBVZE&coliid=I2SBDWA0KCJVT6

    Will be following this diagram for the batteries
    [​IMG]
    How to make a cheap isolated dual-battery setup for $50 - Expedition Portal

    Last edited: Apr 6, 2015
  2. ak_cowboy

    ak_cowboy Penguin Hunter

    Age:
    32
    Posts:
    14,710
    Likes Received:
    252
    Joined:
    Nov 28, 2010
    Location:
    Alaska
    I got the fuse box installed with a 4ga wire supplying the power and accessories grounding to the frame. Just need to make up a dual battery box and do the big three as well.
