Got the part today for $32.41 including tax and decided to install it. Thought I would do a write up for those curious about what the part looks like. The part number for those having a hard time conveying to the dealers what you need is as follows, this is everything listed on the bottom of my box:
“ONE
CX-2117
6L3Z-9E441-A
Valve”
Here’s the box it came in.

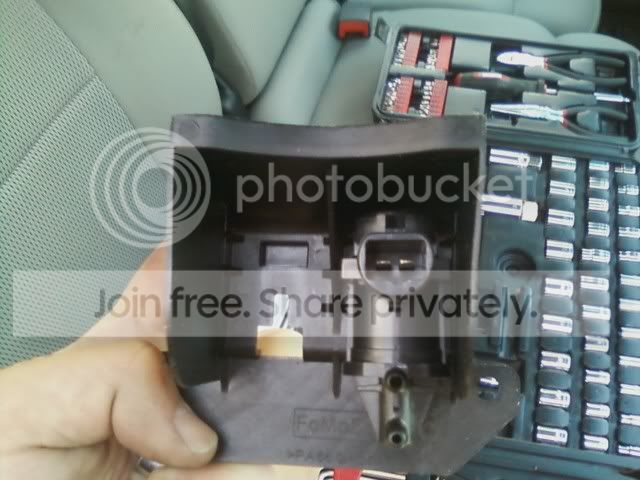

Here’s the old part
Here’s the new part
Here’s what you’ll need to do this
8mm socket
10mm long socket
Optional flat head screw driver
10 minutes if you have an extended 10mm socket otherwise you’ll run around for 30 min like I did trying to find one and end up working with what you got.
First thing to do is pop the hood,
Next look to your battery, you’ll want to remove it for this operation so that you can reach nuts that need to be unscrewed. This is done by unbolting the 8mm nut on the negative cable, then the positive cable, and then the retainer nut at the base of the baterry. After all three have been unbolted slide the battery cover off and remove the battery as well, it could be a little more convenient to unbolt the pan but that’s up to you, I personally chose not to.

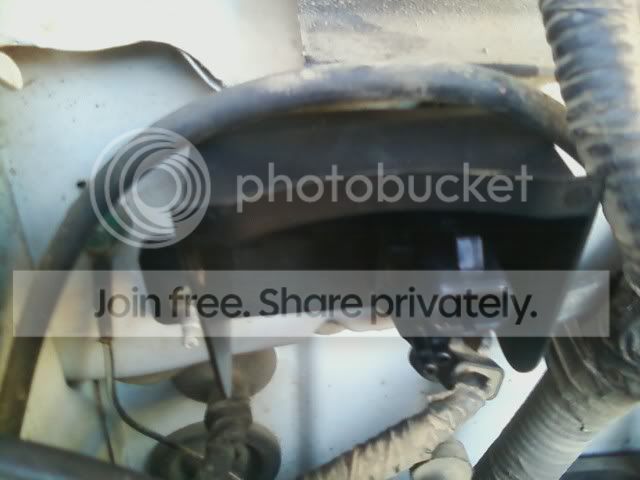

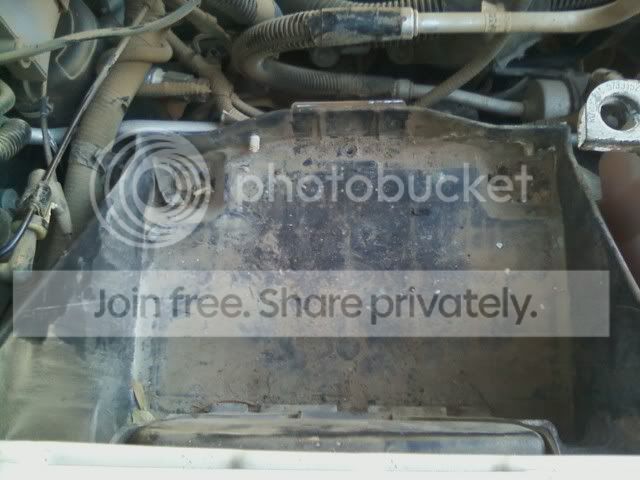

Here’s what the pan looks like with the battery and cover gone.

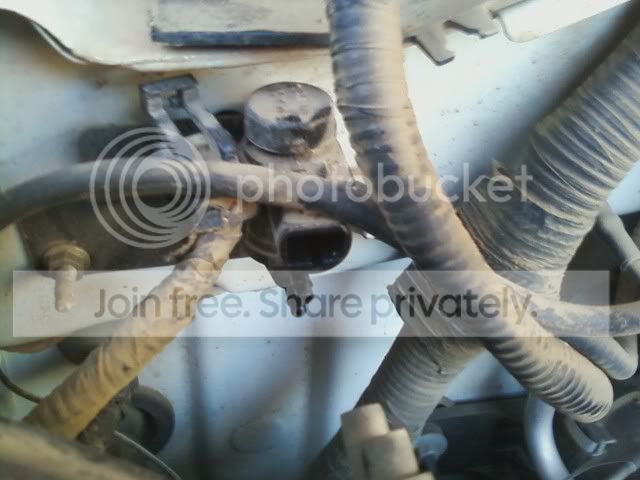

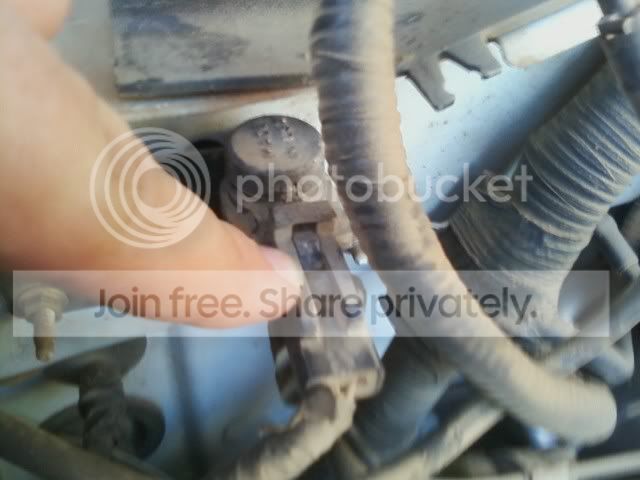

Next you’re going to want to locate the solenoid which is right next to the battery against the passenger side firewall. Use your flathead or girlish fingernails to unclip this.

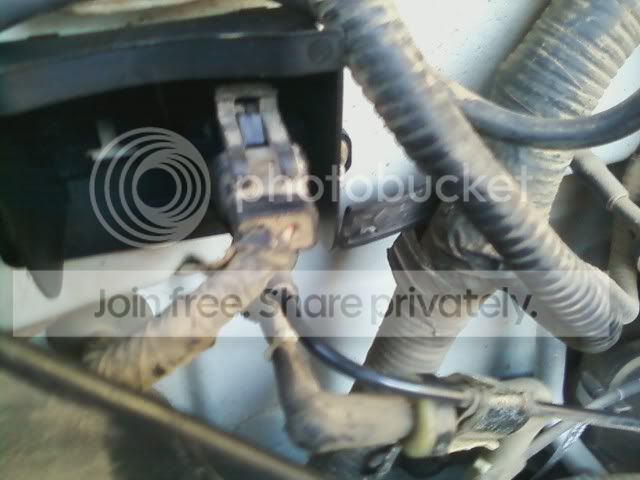

Now firmly grasp the vacuum lines and slide them off. Both lines come off together.

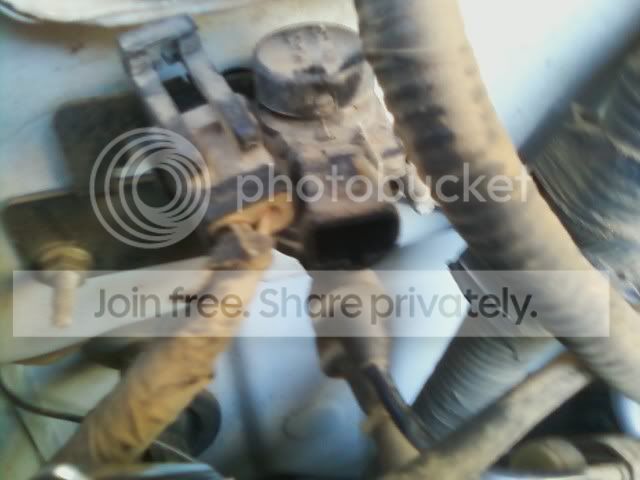

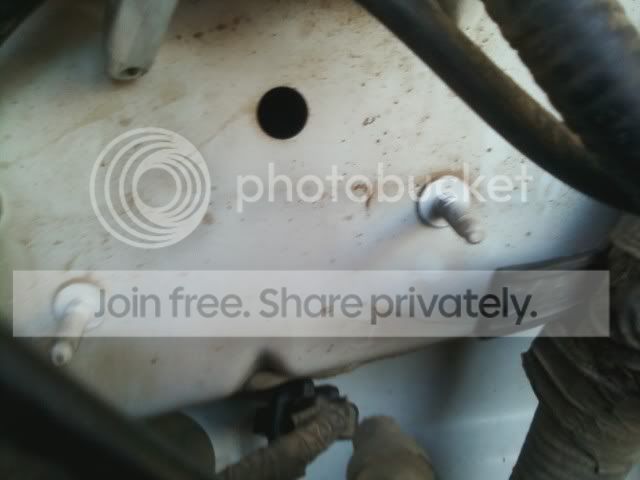

Next remove the two 10mm nuts that are holding the assembly in, it should look like this.
Now to install do exactly as done earlier but in reverse. Tighten the two nuts.
Plug in the vacuum line
Plug in the electrical connector
Install the battery
Congratulations you have now installed a $32.41 part that can save you $1000s in 4x4 repairs down the road but should have been installed when it came from the factory.
