Trans cooler with fan and filter

Discussion in 'V10 and Diesel Engine Performance' started by Roush PSD Interceptor, Jun 10, 2016.

  1. Roush PSD Interceptor

    Roush PSD Interceptor Straight Piped Diesel Staff Member

    Age:
    53
    Posts:
    9,413
    Likes Received:
    492
    Joined:
    Nov 28, 2010
    Location:
    Ringgold, Georgia
    Annual trip to Daytona Beach is Tuesday June the 14th.
    This year we rented a bumper pull camper with bunk beds an a super slide out.
    Weight is over 7K.

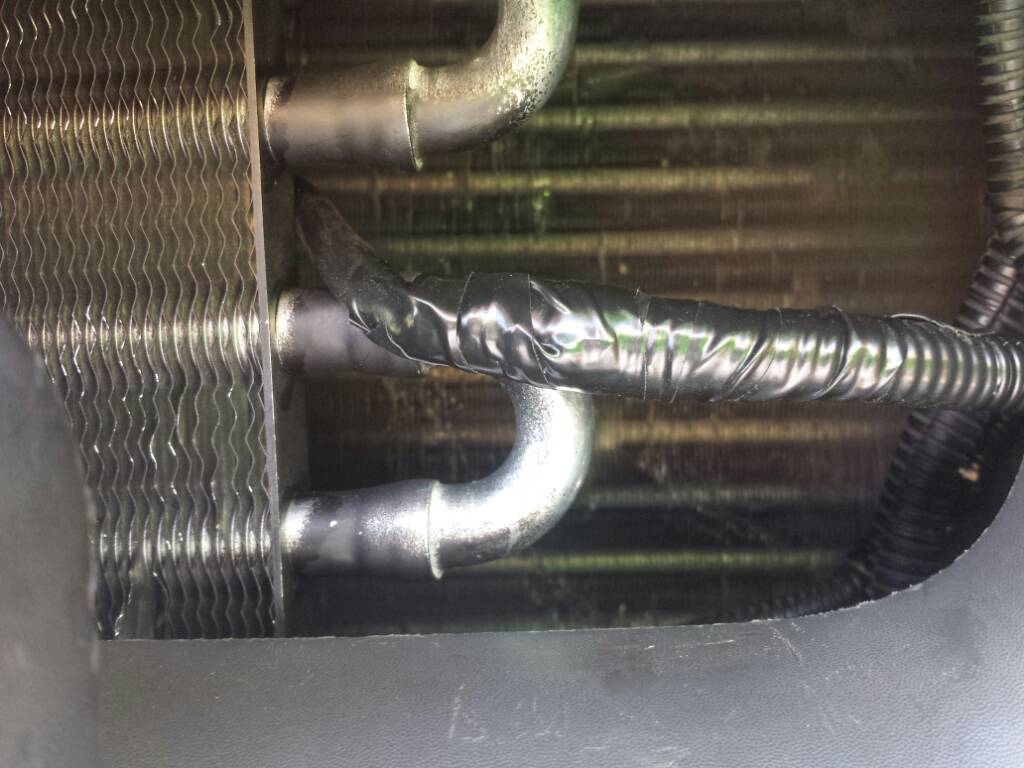

    I figured installing an extra transmission cooler with manual fan would be a good idea on the F250.

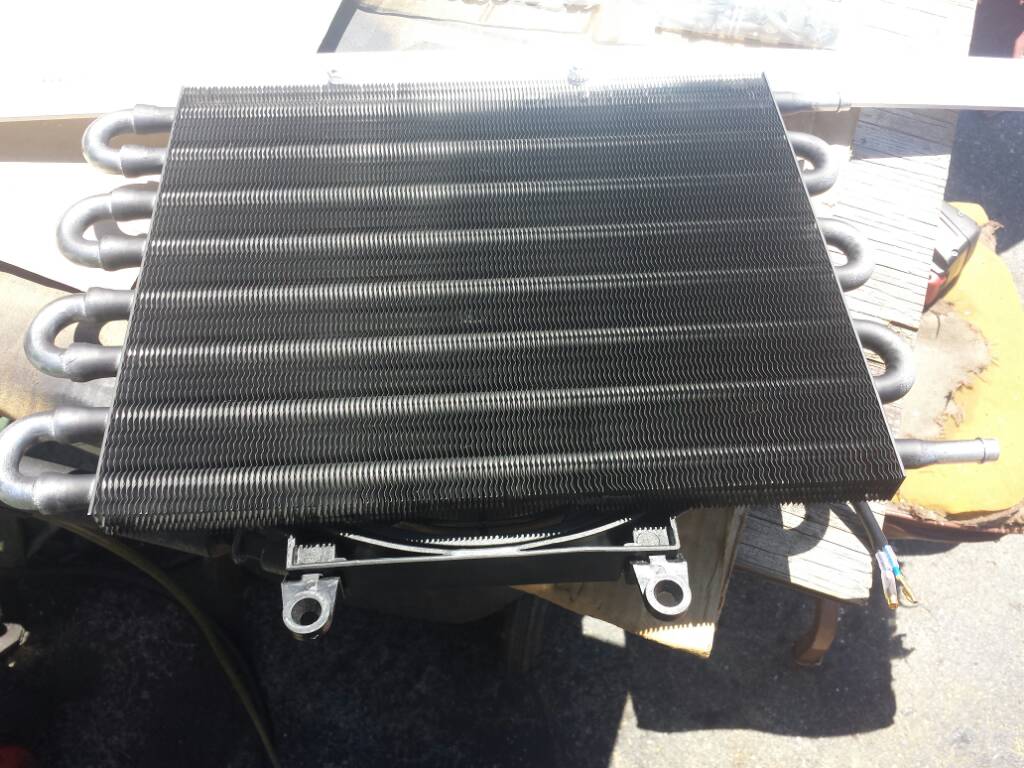

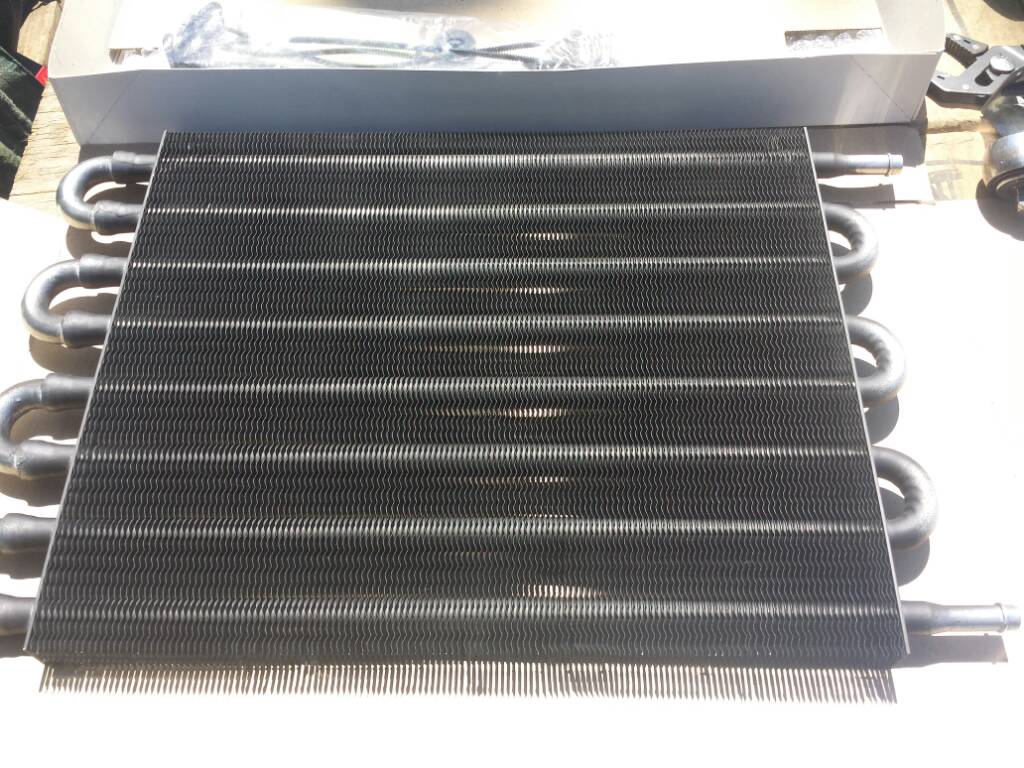

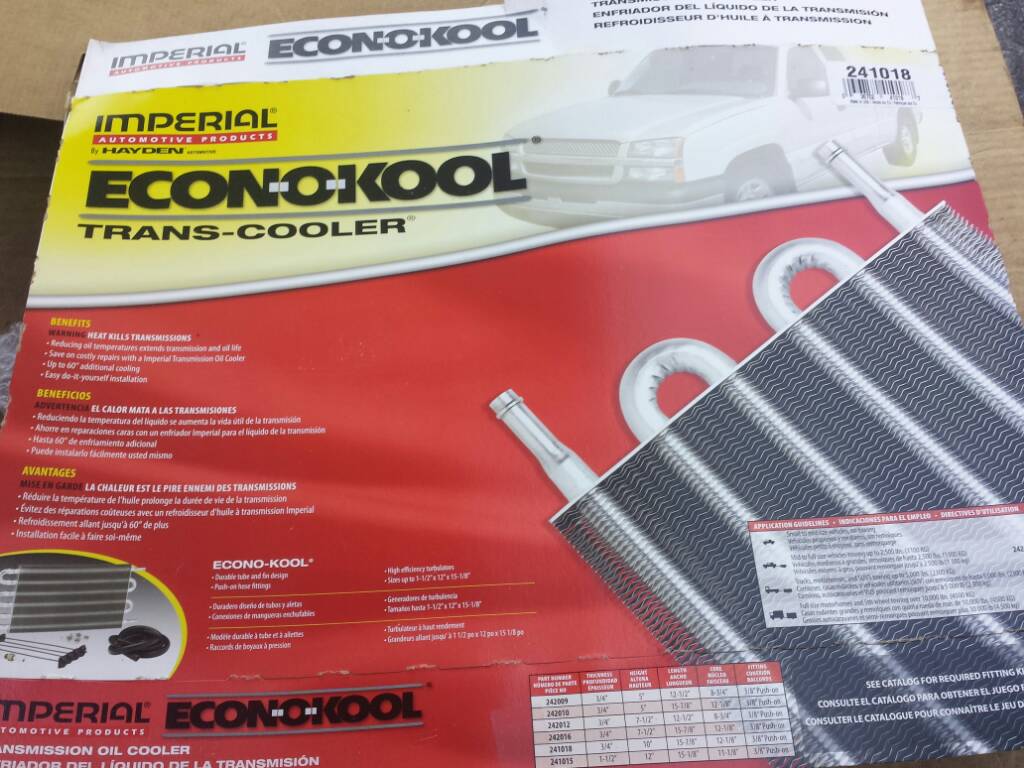

    Started with the Imperial Econ-o-Kool 8 pass I bought for 20% off the retail price.
    Total with tax was $42.67.

    [​IMG]

    [​IMG]

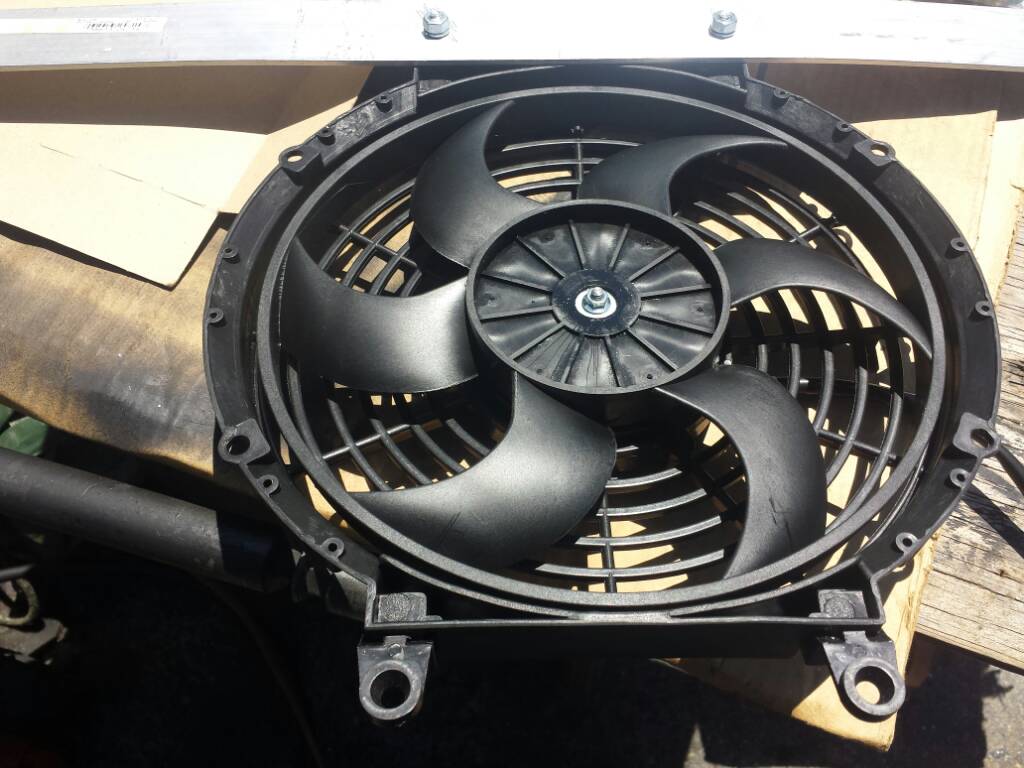

    Found a 10 inch fan on Amazon for $26 shipped 80 watts 6.6 amps.

    [​IMG]

    Had some thick shipping foam I cut down to sandwich between the cooler and fan better than the peel and stick stuff that comes with the cooler.

    [​IMG]

    [​IMG]

    Found the best location after mock ups was behind the license plate opening but had to remove the aftermarket led fog lights from the stock locations.

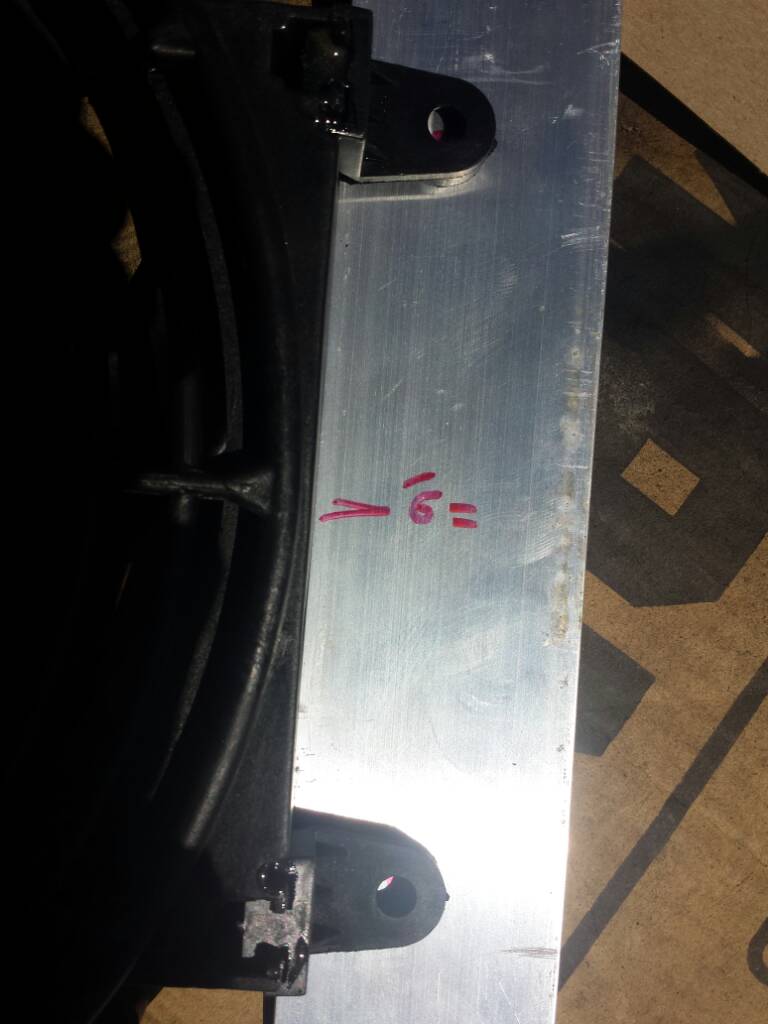

    Made a bracket to hang the fan and cooler from out of aluminum flat stock 2" x 1/8"
    X 32" long.

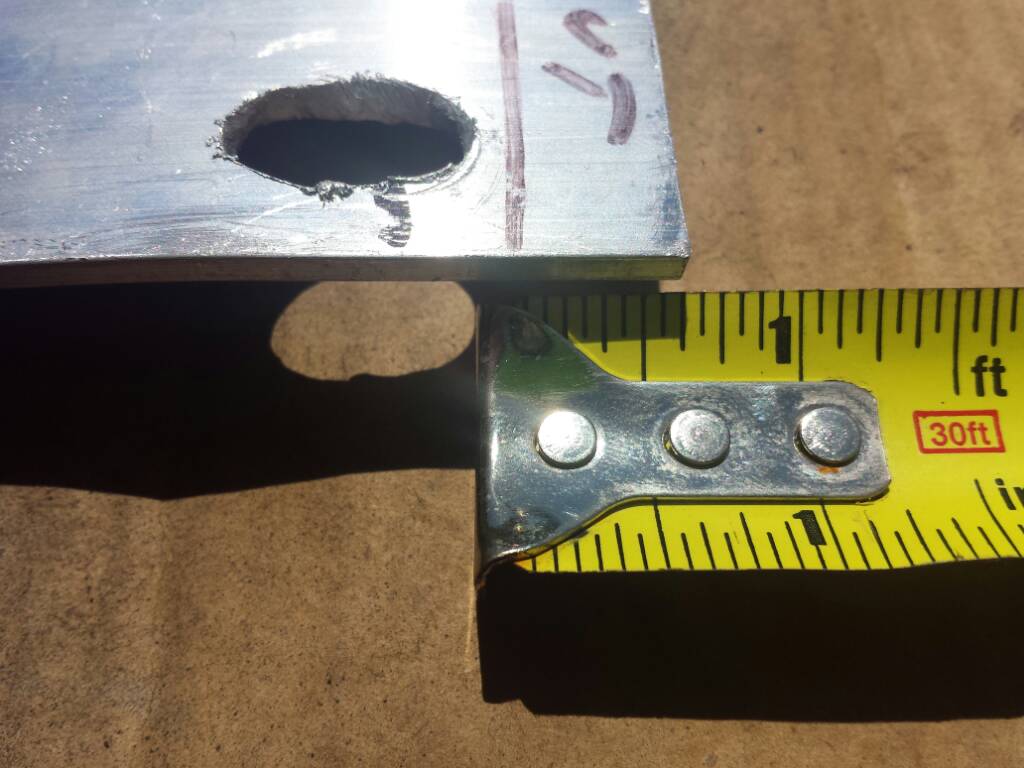

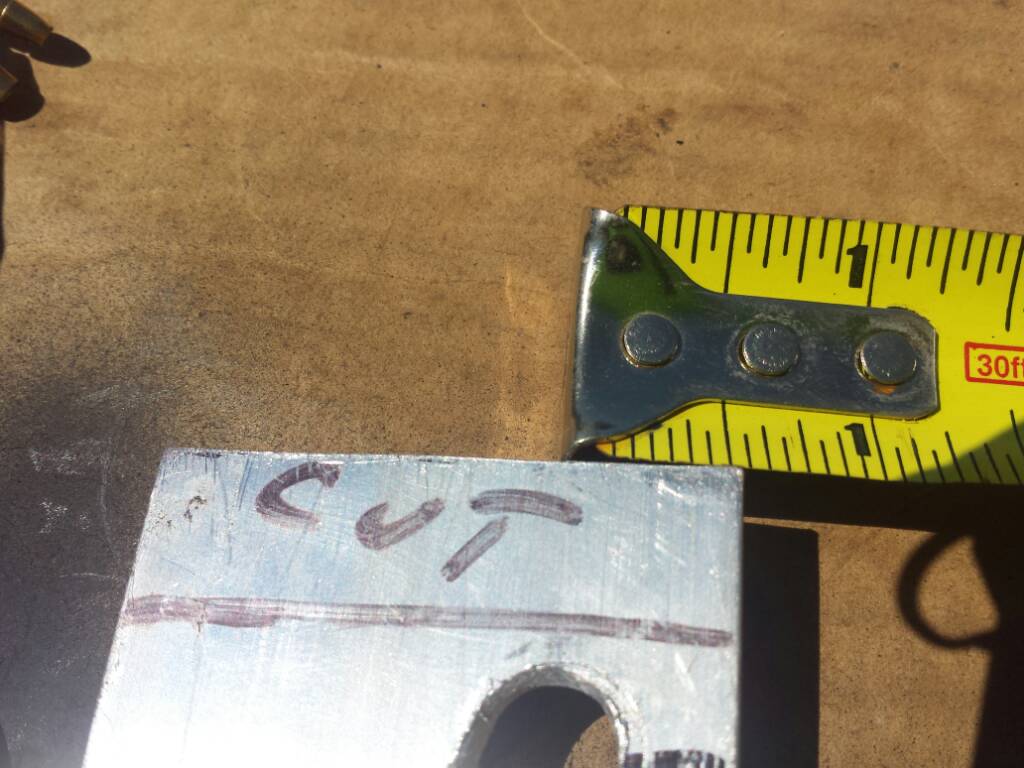

    Made oblong holes so I had some adjustability for
    the 16" on center.
    Made same measured oblong hole on the other end.
    32" allowed me to use two bumper bracket to bumper bolts that face the inside of the bumper with a 13 mm head and 3/8" shank.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

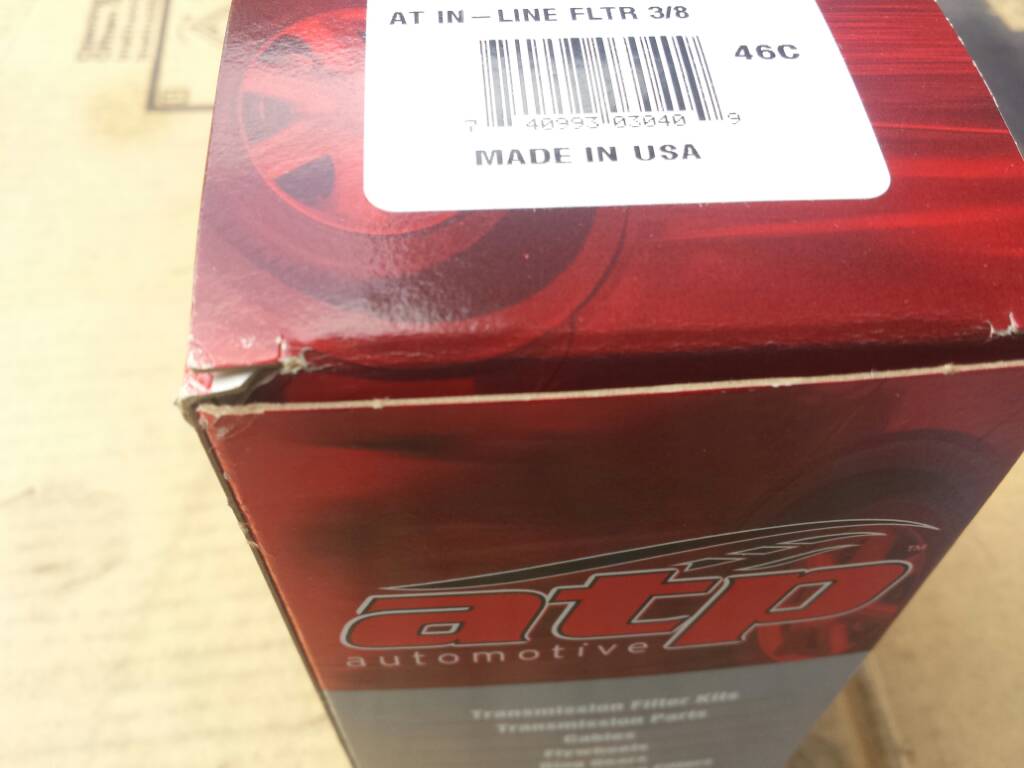

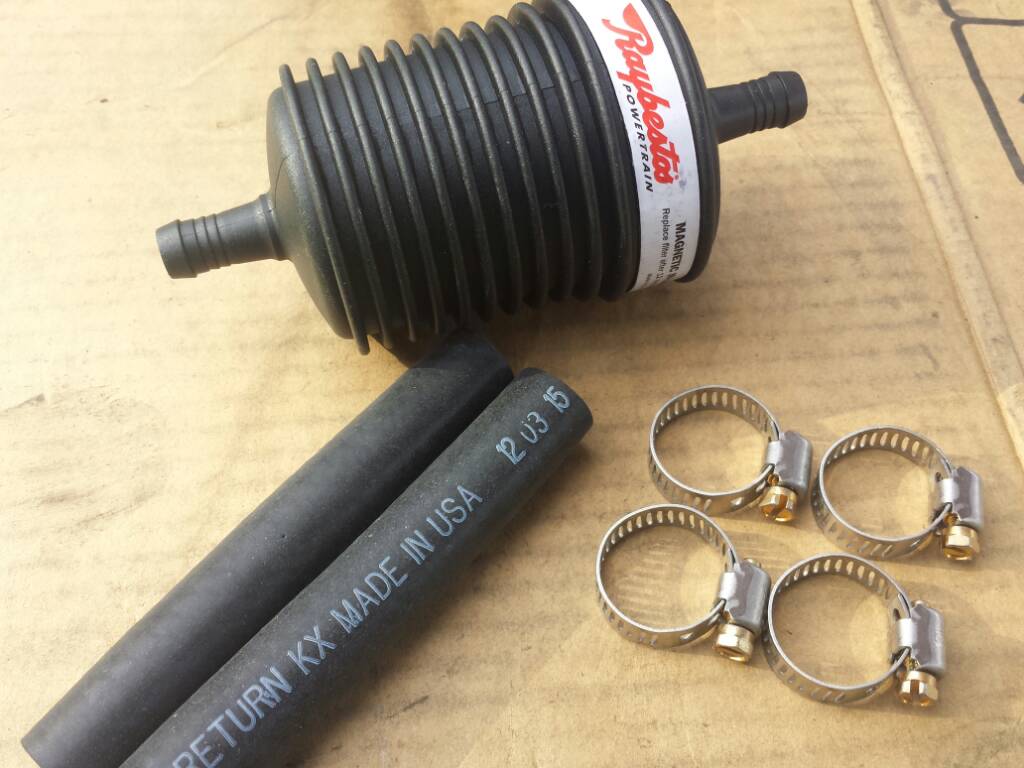

    Rockauto had the transmission filter Motorcraft FT114 and Raybestos inline magnetic particulate.

    [​IMG]
    [​IMG]

    Have a couple missing pics to add later today and rest of description.

    Galaxy S4 Cetane Powered Android

    Last edited: Jun 10, 2016
    Darth Bama likes this.
  2. ak_cowboy

    ak_cowboy Penguin Hunter

    Age:
    32
    Posts:
    14,691
    Likes Received:
    240
    Joined:
    Nov 28, 2010
    Location:
    Alaska
    Nice job. Can't wait to see it finished

  3. Roush PSD Interceptor

    Roush PSD Interceptor Straight Piped Diesel Staff Member

    Age:
    53
    Posts:
    9,413
    Likes Received:
    492
    Joined:
    Nov 28, 2010
    Location:
    Ringgold, Georgia
    Had to go and get another set of switches from Academy Sports for the F250 cause I misplaced the ones I had.

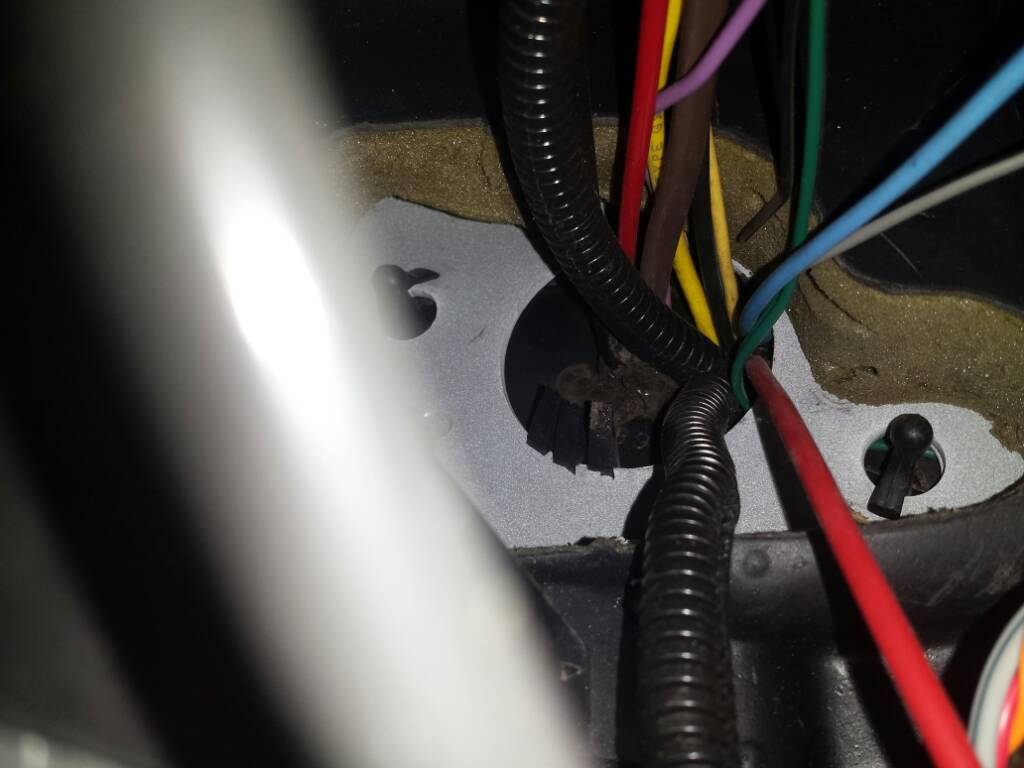

    Finished pulling wires through the clutch slave cylinder hole in the firewall where all my other accessories are run.

    Hopefully finish this in the am tmrw.
    Install this grommet where I was using the factory seal off plug with a drilled hole and RTV silicone, loom the wires inside the cab and the mount swtches.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]


    Galaxy S4 Cetane Powered Android

    Last edited: Jun 11, 2016
  4. ak_cowboy

    ak_cowboy Penguin Hunter

    Age:
    32
    Posts:
    14,691
    Likes Received:
    240
    Joined:
    Nov 28, 2010
    Location:
    Alaska
    What are the switches for?

  5. Roush PSD Interceptor

    Roush PSD Interceptor Straight Piped Diesel Staff Member

    Age:
    53
    Posts:
    9,413
    Likes Received:
    492
    Joined:
    Nov 28, 2010
    Location:
    Ringgold, Georgia
    10 inch fan on the trans cooler in case i get in stop and go traffic,
    new led back up lights not on factory reverse circuit.

    ak_cowboy likes this.
  6. Pity7700

    Pity7700 oh umm...uhh?

    Age:
    28
    Posts:
    7,895
    Likes Received:
    278
    Joined:
    Nov 28, 2010
    Location:
    Flat rock Michigan
    Nice!

    Roush PSD Interceptor likes this.
  7. Roush PSD Interceptor

    Roush PSD Interceptor Straight Piped Diesel Staff Member

    Age:
    53
    Posts:
    9,413
    Likes Received:
    492
    Joined:
    Nov 28, 2010
    Location:
    Ringgold, Georgia
    Transmission temp only went up to 205 once during the hottest part of the trip when we went through Orange Park outside of Jacksonville FL.
    Had to cut the fan on twice due to traffic back ups south of Atlanta and outside of Jacksonville.

    Galaxy S4 Cetane Powered Android
